Active manganese with brown and black color is a kind of manganese oxides with catalytic oxidation activity, which widely exists in soil sediments and ores.The active manganese is composed of two dimensional layered or three dimensional porous manganese oxides with the octahedron formed by the combination of manganese atom and oxygen atom as the structural unit, and the valence state of the element Mn is between +3.3 and +4.0.

Principle of active manganese removing aldehyde:

In addition to TVOC principle:

When VOCs in the air pass through porous titanium dioxide on the surface, they are converted into CO2 and H2O under vacuum ultraviolet light.The excess ozone produced by photocatalysis is removed by MnOx ozone decomposition unit, which can also adsorb and decompose a small amount of residual pollutants, and release clean air after purification.

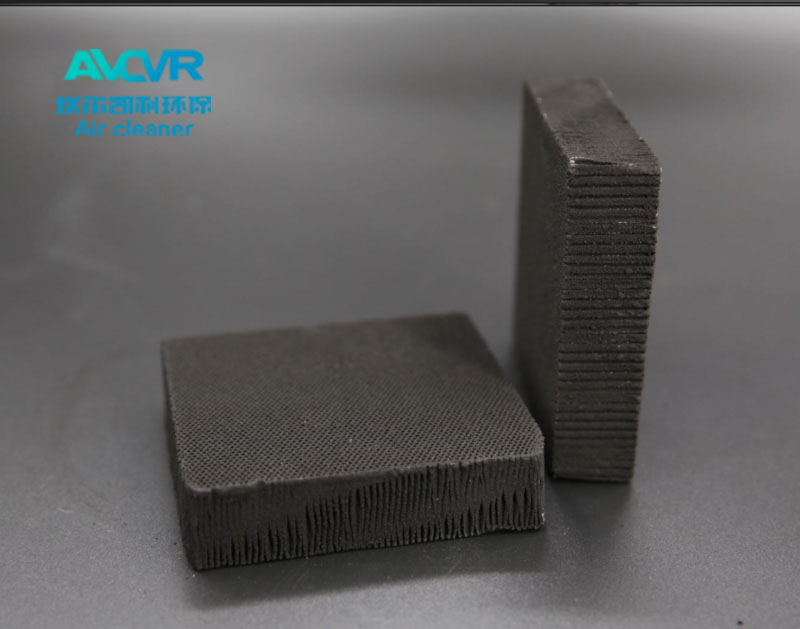

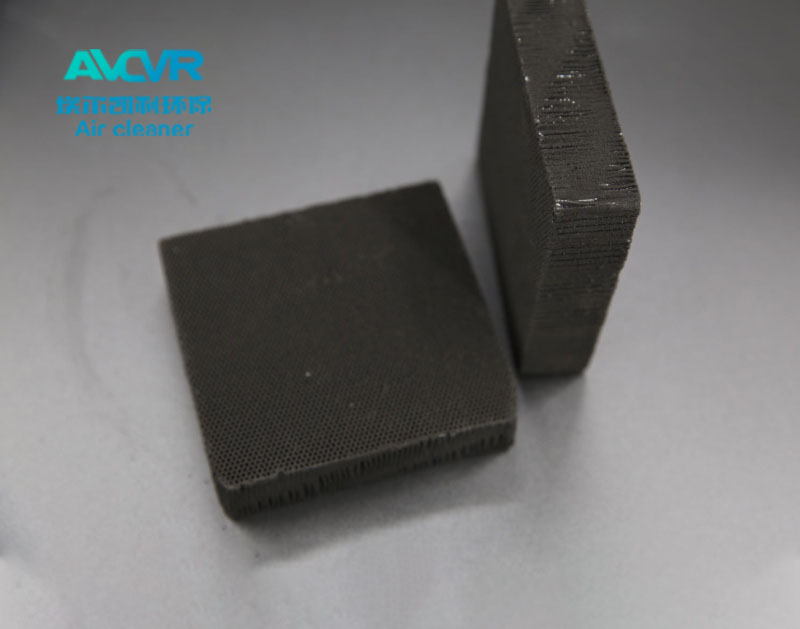

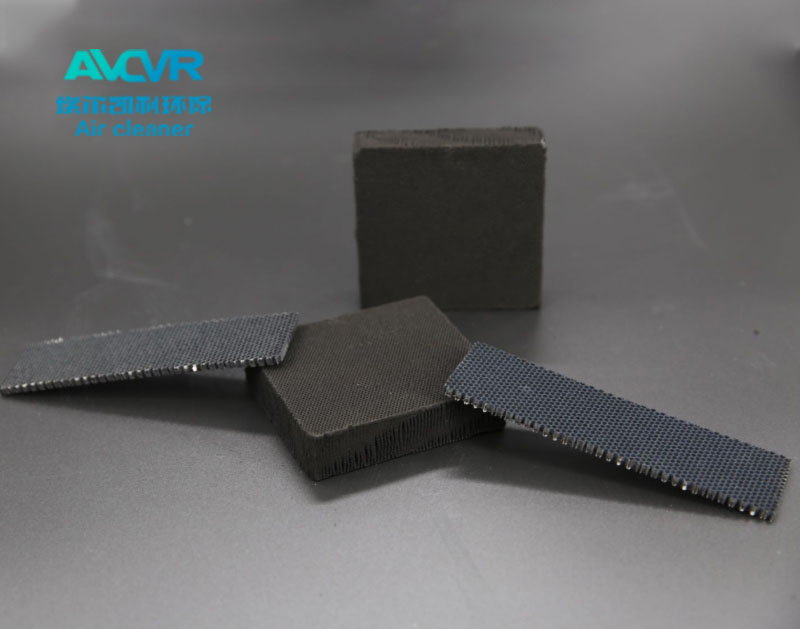

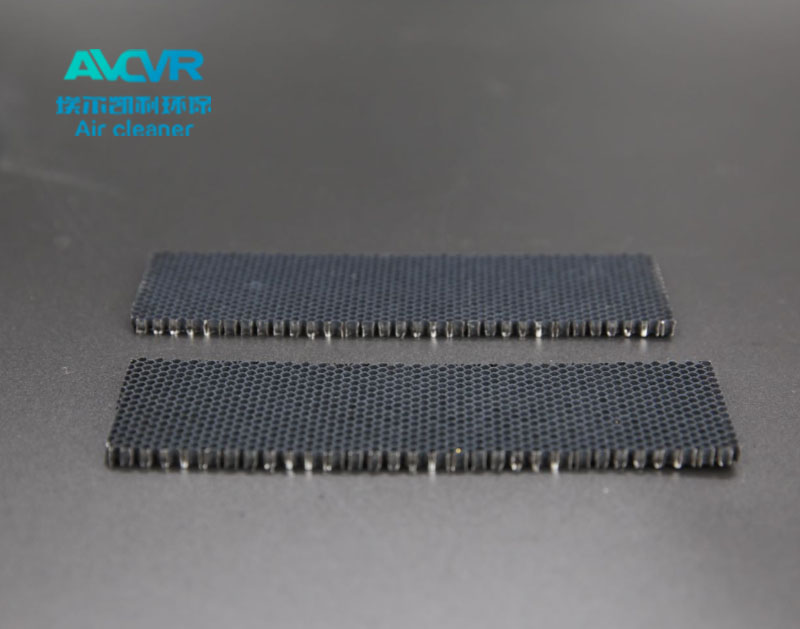

Air clean environmental protection active manganese in addition to TVOC filter using the most advanced active manganese raw materials, through the special process of processing into customer requirements of the filter.Products can be used according to customer requirements: aluminum honeycomb core, sponge, plastic honeycomb, aluminum foil mesh, foam ceramic, metal foam and other materials as the carrier, using aluminum profile, black cardboard paper (or other color paper), sponge strip, stainless steel and other materials as the product edge material, to achieve the best use effect in different use scenarios.

Products can be made according to customer requirements: plate, cylinder, round cake, other special-shaped.

Optional carrier: Plastic honeycomb core, paper honeycomb core, aluminum honeycomb core, foam ceramics, foam metal, sponge, PP corrugated, paper corrugated, etc

Features: Adsorption and decomposition double efficiency, high decomposition efficiency, larger specific surface area, long life, customized size, customized frame, low wind resistance, higher carbon content, customized substrate
